Section 3 User Interface Branding

The Maestro User Interface (LUI) and the Administration Hub components permit limited user interface branding by allowing the administrator the choice of using institutional or company logo images instead of the LISTSERV Maestro logos, and by adding a few text strings at prominent locations, such as the header and footer of each page.

Note: The Subscriber Interface is fully customizable; see Section 2 Customizing the Subscriber Interface for details. To change the text used in the LUI and HUB interfaces, see Section 4 Using the Resource Translation Tool.

To do this, the administrator must create a text file called custom.properties that must be located in the relevant application folder.

To customize the Maestro User Interface component:

                        [maestro_install_folder]/lui

To customize the Administration Hub component:

                        [maestro_install_folder]/hub

This file must be a text file that follows the rules of LISTSERV Maestro INI files (see the LISTSERV Maestro Administrator’s Manual for details). This means that the file must consist of entries of the form key=value, with which the administrator can define customized text strings or point to customized logo image files.

3.1 Adding Custom Text Strings

Each custom text string consists of a key=value pair, where the key is as listed below, and the value is the text that is to appear in the User Interface (and follows the INI file rules). The following text string keys are currently available for customization:

app.title.companyName=YOUR_TEXT

Sets YOUR_TEXT to be used in the window title bar of each browser window that is used to access the Maestro User Interface or the Administration Hub component. The text will appear as the first text in the title bar, before the application name. If this key is not included, the text “L-Soft” will be shown. Supply an empty value app.title.companyName= to not show any text before the application name.

Figure 12 Browser Window Branding

app.msg.headerText=YOUR_TEXT

Adds YOUR_TEXT as a header text at the top of the page. The header text will be drawn so that it will appear on top of the blue header bar shown at the top of each page. The blue header bar will be the background behind the text, which is drawn with a white, bold faced font, about as large as the page headers that appear on each page right below the header bar. If this key is not included, no text will be shown.

Figure 13 LISTSERV Maestro Header Branding

app.msg.footerText=YOUR_TEXT

Adds YOUR_TEXT as a footer text at the bottom of the page. The footer text will be drawn in the bottom left corner of each page where it will appear to the left of the Protected by F-Secure message (if available). It will be drawn in the same small standard page font as the F-Secure message. If this key is not included, no text will be shown.

Figure 14 LISTSERV Maestro Footer Branding

app.url.companyURL=YOUR_URL

Uses YOUR_URL (must be a valid “http://…” URL) as the target link of the logo that appears at the top-right of each page. This logo is set to the LISTSERV Maestro logo with a target URL of http://www.lsoft.com. Customizing the logo’s target URL is the most effective when used together with exchanging the LISTSERV Maestro logo with a customized institutional or company logo (see below). If this key is not included, the URL will point to http://www.lsoft.com.

3.2 Exchanging Logo Images

In order to replace the LISTSERV Maestro logo image files, prepare the customized image files and save them in either GIF or JPG format. There are size restrictions for the files, which are detailed below. Create a folder named custom in the lui and/or hub directories. Save the image files in these custom folders so that the files are accessible to LISTSERV Maestro and so that the files will not be changed or deleted by LISTSERV Maestro’s upgrade routine (although the folders may be deleted during a full uninstall of LISTSERV Maestro).

For the Maestro User Interface component, create a custom folder so that the path to save the image files reads:[maestro_install_folder]/webapps/lui/custom

For the Administration Hub component, create a custom folder so that the path to save the image files reads:[maestro_install_folder]/webapps/hub/custom

Storing image files anywhere else will either have the effect that LISTSERV Maestro will not be able to find them, or they may be lost during an upgrade.

Once the images are saved in the custom folder, LISTSERV Maestro needs to know about them. Do so with the same sort of key=value entries in the custom.properties file(s) as described above. Each key’s value must be a relative filename that starts with a forward slash “/” and includes the name of the custom folder itself as the first path element (using the forward slash as the separator).

For example: “/custom/myImage.gif”.

The following image file keys are currently available:

app.img.titleBarLogo=/custom/FILENAME

Uses the image file with the name FILENAME from the custom folder to replace the LISTSERV Maestro logo image that is shown at the right of the header bar that appears at the top of each page. This logo is also a clickable link that may be customized. Set the target URL with the app.url.companyURL key (see above). This image must be 60 x 60 pixels in size. If this key is not included, the LISTSERV Maestro logo will be used.

Figure 15 Right Logo Branding

app.img.appLogo=/custom/FILENAME

Uses the file with the name FILENAME from the custom folder to replace the LISTSERV Maestro logo image that is shown on the login page when the Maestro User Interface or Administration Hub is not accessible. Under normal conditions, the login page only shows the image in the header bar, plus the edit fields for the login. However, if the Maestro User Interface or Administration Hub is locked by the administrator or is for other reasons not correctly running, the login page displays this logo and a short message text, instead of the login edit fields. This logo image should be about 113 x 113 pixels in size, but the size may vary (within reasonable limits). If this key is not included, a version of the LISTSERV Maestro logo will be used.

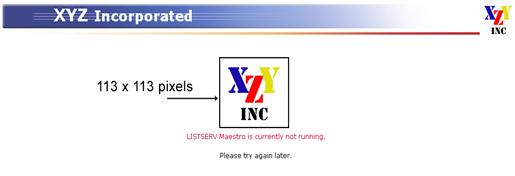

Figure 16 Error Screen Logo Branding
