Section 5
Global Component Settings

Global Component Settings are split into three main areas:

  • Administration Hub – Sets the time, backup folder, number of previous backup copies to be kept, and any external processes to be run after backup. Also sets the level of severity for log messages to be saved for the program.
  • Maestro User Interface – Sets the backup folder, the number of previous backup copies to be kept, the port number for transferring tracking data, the time interval to transfer events from Maestro Tracker to the Maestro User Interface, and the level of severity for log messages to be saved. Also sets the default LISTSERV connection, the database connection and the database plugins, as well as restrictions on drop-in content elements, recipients types, and size limits for uploaded files.
  • Maestro Tracker – Sets the backup folder, number of previous backup copies to be kept, the communications port number, and the level of severity for log messages to be saved.

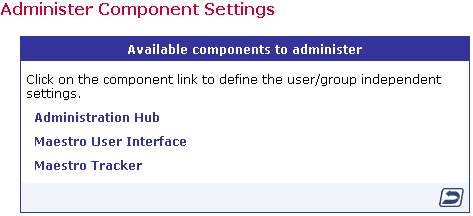

Figure 19 Global Component Settings

Global component settings screen shot
